OKD-CL

Object Knowledge Decomposition and Component-Labeled Dataset
  • Deep learning models can achieve strong recognition performance, but their decisions may rely on irrelevant background features, making their reasoning difficult to interpret and generalize.

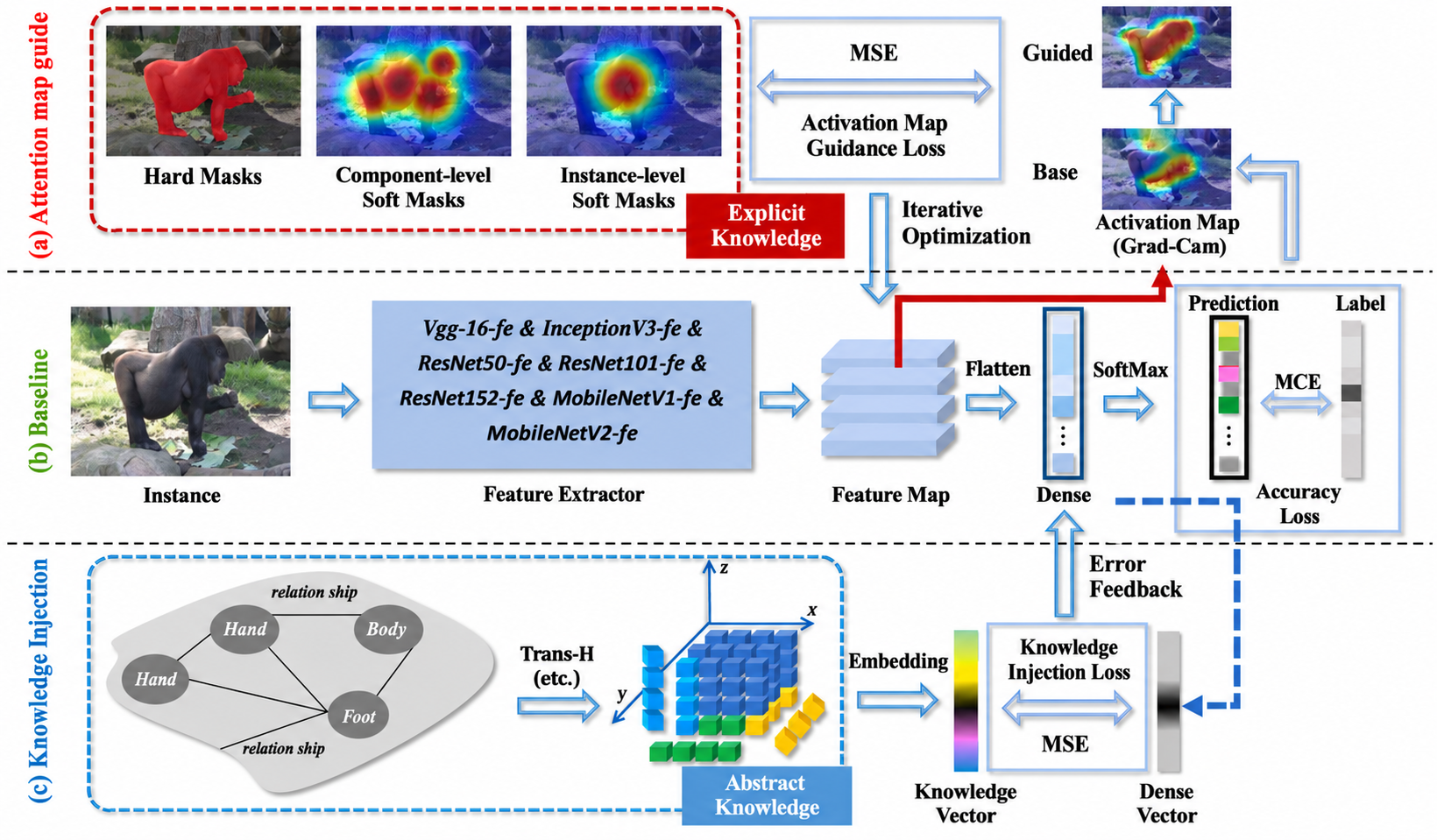

    • OKD-CL knowledge-guided object recognition framework
  • OKD-CL addresses this problem by decomposing objects into meaningful components and combining two kinds of human-centric knowledge: Abstract Component Knowledge (ACK), which describes component attributes and relationships in natural language, and Explicit Visual Knowledge (EVK), which provides hard masks, instance-level soft masks, and component-level soft masks.
  • With these visual and semantic knowledge representations, OKD-CL guides models to focus on meaningful object and component features rather than irrelevant background cues. The benchmark evaluates both classification accuracy (ACC) and Foreground Reasoning Ratio (FRR), which measures whether the model’s attention is concentrated on the foreground object.
  • OKD-CL contains 99 object categories and 14,114 image instances, including 12,625 training samples and 1,489 testing samples. Our code and dataset are available at [https://github.com/XiGuaBo/OKD-CL](https://github.com/XiGuaBo/OKD-CL)
Active
Click to enter and fill out the application form Get Dataset
Click to manage your methods or submit results Submit Task

Submission Guidelines

OKD-CL Benchmark - Submission Guidelines

OKD-CL Benchmark

1. Evaluation Data Format

After downloading and extracting the dataset, you will find the following files:

OKD-CL_dataset/
├── train/
├── test/
├── Hard_masks/
├── Instance-level_soft_masks/
├── Component-level_soft_masks/
└── class_mapping.json
  • train/: Training images. It contains 99 class folders named with official synsets, such as n02101006. Keep these folder names unchanged; do not rename them to numeric class IDs.
  • test/: 300 test images named from test_000001.JPEG to test_000300.JPEG. Run inference on these images.
  • Hard_masks/: Hard masks for the training images. They may be used for training or analysis.
  • Instance-level_soft_masks/: Instance-level soft masks for the training images. They may be used for training or analysis.
  • Component-level_soft_masks/: Component-level soft masks for the training images. They may be used for training or analysis.
  • class_mapping.json: The official class mapping file. Use its class_to_id mapping to convert synset classes to model output indices. Do not reorder the classes.

The classifier output must have 100 positions. There are 99 valid classes; index 38 is a reserved position and does not correspond to a valid class. Keep all 100 output positions. A prediction at index 38 is counted as an incorrect classification.

2. Submission Format

Submit one ZIP file. Its root must contain exactly the following four files.

Folder Structure

submission.zip
├── metadata.json
├── sample_ids.txt
├── scores.npy
└── cams.npy

Do not add an extra top-level directory, additional files, or model weights.

  • metadata.json: Basic information about the method.
  • sample_ids.txt: One test sample ID per line. It must contain every ID from test_000001 through test_000300 exactly once. Its line order must match the first dimension order of both arrays below.
  • scores.npy: Classification scores with shape [300, 100] and dtype float16 or float32. Row i corresponds to the ith sample ID in sample_ids.txt. The index with the maximum score is used as the predicted class.
  • cams.npy: One CAM for every sample and output class, with shape [300, 100, H, W] and dtype float16 or float32. The spatial dimensions must satisfy 1 <= H, W <= 32. Examples include [300, 100, 7, 7] and [300, 100, 14, 14].

Example

Example metadata.json:

{
  "format_version": "1.0",
  "team_name": "Your team name",
  "method_name": "Your method name"
}

Example sample_ids.txt:

test_000001
test_000002
...
test_000300

Generate scores.npy and cams.npy from your model inference results.

3. Notes

Numeric values: scores.npy and cams.npy must not contain NaN or Inf.

Sample IDs: Test sample IDs must not be missing, duplicated, or unknown.

ZIP size: The total uncompressed size of the ZIP file must not exceed 128 MiB.

Evaluation: The website calculates and returns ACC and FRR from the submitted results.

Local Format Validation Tool

Before uploading, use the local validation tool to check the ZIP structure, required files, sample IDs, array shapes, and numeric format:

Download the file here: https://drive.google.com/file/d/1zw_gPlh5z_vnl5fJrYcHde6IQTstbTeZ/view?usp=drive_link

If needed, you can also download the file from the Baidu Netdisk link below.
Download the file here: https://pan.baidu.com/s/13cW3YG2xUioLI3xsXKTDmA?pwd=vlp6

This tool is intended for pre-submission format checks. The website validation result for the uploaded file is final.

Method Leaderboard

1 Methods 2 Metrics
This leaderboard shows methods that are online and have submitted results. Methods are ranked based on their performance metrics.
Method ACC Higher is better FRR Higher is better
test
Last submission: 2026-09-23
50.0000 28.2959
